600kw 60Hz Industrial Open Power Generator Huachai Deutz 750kVA
Diesel Generator

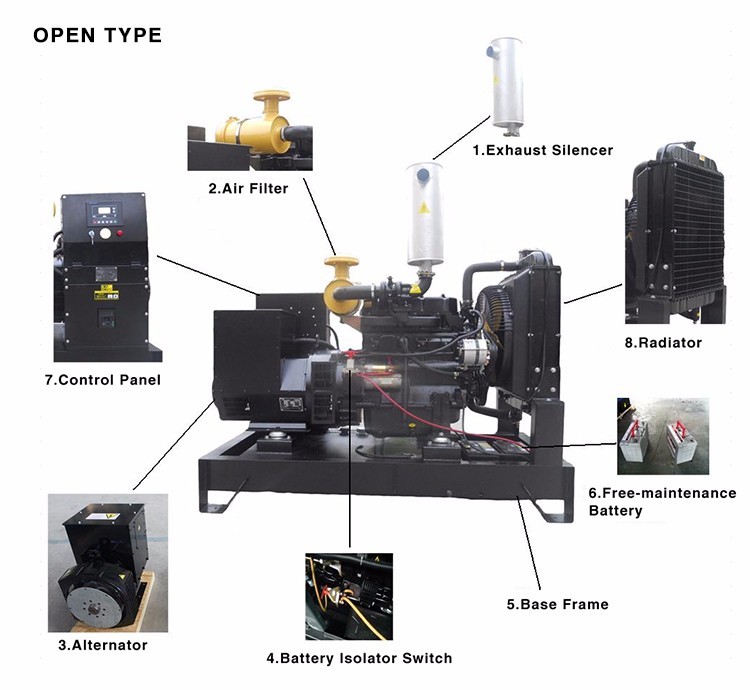

Standard configuration of diesel generator set for open type :
1 . all kinds of engine brand as options for customer
2 . Stamford alternator ( Copy stamford or other brand for option )
3 . SMARTGENT or Deepsea control panel
4 . circuit breaker
5 . 8 Working Hours Base Fuel Tank , many kinds of base frame for
options .
6 . Anti-Vibration Mounted System
7 .Battery and battery charger
8 . Industrial silencer and flexible exhaust hose
9 . Maintenance and operation manual for generator, engine and
alternator, engine parts catalog, quality certificate, etc.
DEUTZ is one of the world’s leading manufacturers of innovative
drive systems. Its core competences are
the development, production, distribution and servicing of diesel,
gas and electric drivetrains for
professional applications. The engine specialist offers a broad
product spectrum with capacities ranging
up to 620 kW that is used in construction equipment, agricultural
machinery, material handling equipment,
stationary equipment, commercial vehicles, rail vehicles and other
applications.
| Genset Model | BS-D750 |
| Prime Power (kw/kva) | 600 / 750 | Standby Power(kw/kva) | 660 / 825 |
| Voltage (v) | 480 | Rated Speed (rpm) | 1800 |
| Frequency (Hz) | 60 | Rated Current (A) | 902 |
| Connection: | 3 phase | Power Factor: | 0.8 |
| Engine Model: | HC12V132ZL-LAG2B | Alternator Model: | HCI544E |
| Net Weight (kgs)-Silent | 9500 | Dimensions (mm)-Silent | 5000x1800x2055 |
| Engine Parameter: |
Manufacturer/Model: Engine type: Control System: Displacement: Bore x Stroke Compression Ratio: Power: Effective pressure: MAX. exhaust gas temperature: Fuel Consumption: Max. noise value at 1m : Battery voltage(V): Starter rated power (KW): Generator voltage(V): Max. exhaust back pressure (mbar): Max. allowable air inlet resistance (mbar): Lowest ambient temperature of cold starting without assistant: Lowest ambient temperature of cold starting with flame preheat plug: | HC12V132ZL-LAG2B
4-Cycle,12-Cylinder,V-form,Turbocharged mechanical /electronic 23.812 L 132 x 145 mm 16.5 : 1 740 KW 35.5 bar 560℃ 197g/kw·h ≤99 dBA 24 9 28.5 50 50
-17℃
-32℃ |
| Fuel System |
Cylinder ignition sequence: Idle speed (rpm): Low-pressure pump oil load capacity (L/h): Fuel filter element type: No. of the fuel filter element | 1-8-5-10-3-7-6-11-2-9-4-12 650 190 Disposable filter 2 |
| Lube System |
Oil Consumption (as % of fuel consumption): oil temperature 90℃ Min. oil pressure at 1500rpm: Min. oil pressure at 600rpm: Oil temperature of normal operation: Initial oil filling: Oil filter element type: No. of oil filter element: | <0.3% of fuel consumption
≥3 bar ≥1 bar ＜130 ℃ 54 Disposable filter 1 |
| Cooling system |
Engine coolant capacity( L): Water-pump flow (L/min): Water-pump pressure (bar): Allowable pressure loss of cooling system (include pipeline) (bar): Heat carry off by coolant (kW): In＆Outlet coolant size (mm): Temperature of switch on two thermostats respectively (℃): Temperature of switch on two thermostats totally (℃): Max. allowable operating temperature (℃): Temperature difference between inlet and outlet coolant (℃): Fan : Fan connection : Fan diameter (mm): Air volume of fan(m3/s): Fan power consumption (kW): Fan transmission ratio | 30 626 1.25
≤0.35 360 70
79/87
94/102 103
≤8 Exhaust type V-belt drive 1320 19 ≤26 0.76 |
| Alternator Parameter: Basic Information |
The alternators meet the standards of: GB755, BS5000, VDE00530, NEMAMG1-22,IED34-1,CSA22.2 and AS1350 |
| Technical Data: |
Manufacturer: Phases: Bearing numbers: Power Factor: Protection Class: Altitude Condition: Excitation: Insulation class/Temp. rise class: Tel. Influence Factor TIF: Tel. Harmonic Factor THF: Steady State Voltage Regulation: Alternator Capacity: Efficiency: | STAMFORD HCI544E 3 1 0.8 IP23 ≤1000M Brushless, self-excitation H / H <50 <2% ≤±1% 570.4KW 94.9% |
Q : What is the difference between Prime power and Standby power ?
A : Prime power is 12hours continous power , one hour 10% over load
in every 12 running hours is allowed .
Standby power is the limit value of maximum output for emergency
use . Overloading is prohibited
Q : How to choose the power ?
A : Collect all power of your equipments , take the current into
your consideration .
Q : Does your generator have global warranty?
A : Yes . Global warranty service is available depending on the engines and
alternators you choose .
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if
your order with some special design,
then the delivery time is longer.
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or
irrevocable L/C.
