430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System

    Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers

    Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers
    • Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers
    • Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers
    • Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers
    • Buy cheap 430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System from wholesalers

    430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System

    Ask Lasest Price
    Brand Name : BOSSPOWER
    Model Number : BS-D538
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets per Month
    Delivery Time : About 30 days after receiving deposit or original L/C.But if your order with some special design, then the delivery time is longer.
    • Product Details
    • Company Profile

    430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System

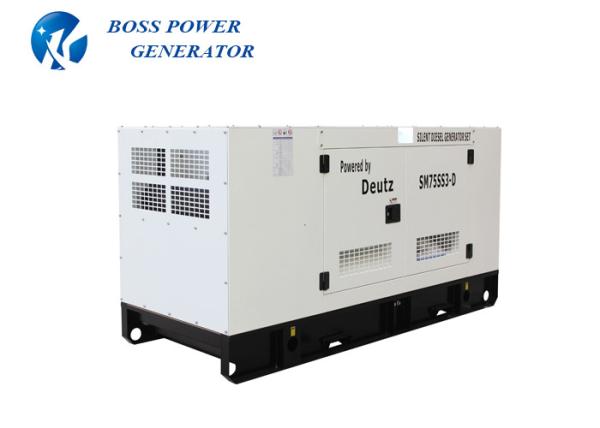

    430kw Deutz Water Cooled Rainproof Soundproof Diesel Engine Generator


    PRODUCT DESCRIPTION
    Frequency: 50HZ;Rotating speed: 1500Rpm
    ModelPower(KW)Capacity(KVA)Rated current(A)Engine ModelOriginal Stamford
    BS-D60486086.6BF4M2012UCI224E
    BS-D7560751082BF4M2012CUCI224F
    BS-D10080100144.3BF4M1013ECUCI274C
    BS-D125100125180.4BF4M1013FCUCI274D
    BS-D160128160230.9BF6M1013ECUCI274F
    BS-D188150155270.6BF6M1013FCG2UCI274G
    BS-D200160200288.6BF6M1013FCG3UCI274H
    BS-D230184230331.9BF6M1015-LA GAUCD274J
    BS-D250200250360.8BF6M1015C-LA G1AUCD274K
    BS-D300240300433BF6M1015C-LA G2AHCI444D
    BS-D325260325469BF6M1015C-LA G3AHCI444ES
    BS-D350280350505BF6M1015C-LA G4HCI444E
    BS-D375300375541.2BF6M1015CP-LA GHCI444FS
    BS-D438350438631.4BF8M1015C-LA G1AHCI544C
    BS-D450360450649.5BF8M1015C-LA G2HCI544C
    BS-D463370463667.5BF8M1015CP-LA G1AHCI544C
    BS-D500400500721.7BF8M1015CP-LA G2HCI544C
    BS-D550440550793.8BF8M1015CP-LA G4HCI544D
    BS-D575460575829.9BF8M1015CP-LA G5HCI544E
    Frequency: 60HZ;Rotating speed: 1800Rpm
    ModelPower(KW)Capacity(KVA)Rated current(A)Engine ModelStamford Type
    BS-D705670101BF4M2012UCI224E
    BS-D887087.5126.3BF4M2012CUCI224F
    BS-D11491114164BF4M1013ECUCI274C
    BS-D130104130187.6BF4M1013FCUCI274D
    BS-D168134168241.7BF6M1013ECUCI274E
    BS-D190152190274.2BF6M1013FCG2UCI274F
    BS-D213170213306.7BF6M1013FCG3UCI274G
    BS-D250200250360.8BF6M1015-LA GAUCI274J
    BS-D275220275396.9BF6M1015C-LA G1AUCI274J
    BS-D313250313451BF6M1015C-LA G2AHCI444D
    BS-D350280350505BF6M1015C-LA G3AHCI444D
    BS-D456365456658.5BF6M1015C-LA G4HCI444F
    BS-D488390488703.6BF6M1015CP-LA GHCI544C

    More specific parameters to choose.

    Genset ModelBS-D538
    Prime Power (kw/kva)430 / 538Standby Power(kw/kva)473 / 592
    Voltage (v)400Rated Speed (rpm)1500
    Frequency (Hz)50Rated Current (A)776
    Connection:3 phasePower Factor:0.8
    Engine Model:BF8M1015CP-LA G4Alternator Model:HCI544D
    Net Weight (kgs)-Silent5500Dimensions (mm)-Silent5000x1800x2450
    Engine Parameter:
    Manufacturer/Model:
    Engine type:
    Control System:
    Displacement:
    Bore x Stroke
    Compression Ratio:
    Power:
    Effective pressure:
    MAX. exhaust gas temperature:
    Inlet air (25 /1000mbar):
    Fuel Consumption:
    Max. noise value at 1m :
    Battery voltage(V):
    Starter rated power (KW):
    Generator voltage(V):
    Max. exhaust back pressure (mbar):
    Max. allowable air inlet resistance (mbar):
    Lowest ambient temperature of
    cold starting without assistant:
    Lowest ambient temperature of cold
    starting with flame preheat plug:
    DEUTZ BF8M1015CP-LA G4
    4-Cycle,8-Cylinder,V-form,Turbocharged

    mechanical /electronic
    15.874 L
    132 x 145 mm
    16.5 : 1
    530 KW
    27.2 bar
    630ºC
    2206 m3/h
    196g/kw·h
    ≤99 dBA
    24
    9
    28.5
    50
    50

    -17ºC

    -32ºC
    Fuel System
    Cylinder ignition sequence:
    Idle speed (rpm):
    Low-pressure pump oil load capacity (L/h):
    Fuel filter element type:
    No. of the fuel filter element
    1-8-4-5-7-3-6-2
    650
    190
    Disposable filter
    2
    Lube System
    Oil Consumption (as % of fuel consumption):
    oil temperature 90ºC
    Min. oil pressure at 1500rpm:
    Min. oil pressure at 600rpm:
    Oil temperature of normal operation:
    Initial oil filling:
    Oil filter element type:
    No. of oil filter element:
    <0.3% of fuel consumption

    ≥3 bar
    ≥1 bar
    <130 ºC
    48
    Disposable filter
    1
    Cooling system
    Engine coolant capacity( L):
    Water-pump flow (L/min):
    Water-pump pressure (bar):
    Allowable pressure loss of cooling system (include pipeline) (bar):
    Heat carry off by coolant (kW):
    In&Outlet coolant size (mm):
    Temperature of switch on two thermostats respectively (ºC):
    Temperature of switch on two thermostats totally (ºC):
    Max. allowable operating temperature (ºC):
    Temperature difference between inlet and outlet coolant (ºC):
    Fan :
    Fan connection :
    Fan diameter (mm):
    Air volume of fan(m3/s):
    Fan power consumption (kW):
    Fan transmission ratio
    21
    347
    1.25

    ≤0.35
