48kW / 60KVA Soundproof type 4 stroke Auto start perkins diesel
generator set
Generator Supply Scope :
1 . Engine , alternator , radiator , auto control panel .
2 . Base frame , base fuel tank , Flexible pipes , flange , exhaust
silencer .
3 . Battery , battery charger , battery wires , internal cables ,
circuit breaker .
4 . Manual books of engine , alternator , genset , control panel ,
wires diagram .
5 . optional parts : Soundproof

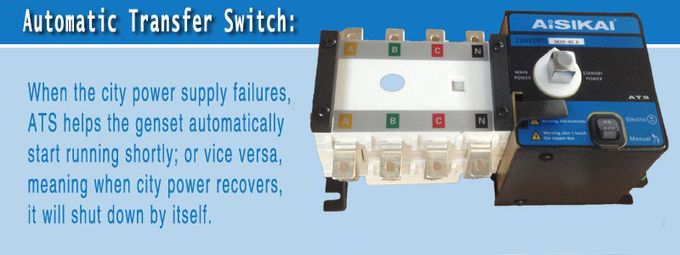

6 . ATS ( automatic transfer switch ) , AMF panel , Trailer ,
Parallel system by your extra choose
Optional Supply :
1 . ATS ( Automatic transfer system )
2 . AMF Panel
3 . Silent canopy ( for silent type only )
4 . Fuel Tank ( 8 hours running )
5 . Four Protection ( high temperature auto shutdown , overload
automatic shutdown ,
low oil pressure automatic shutdown , automatic shutdown phase )
6 . Parallel system
7 . Remote system
8 . Trailer type
9 . Soundproof / water proof
10 . Lighting tower
Soundproof (Silent ) type
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<100 dB (open type) <80dB (soudproof)<70dB (silent
type)<65dB (super silent)
Features of genset :
1 . Powered by heavy duty industrial diesel engines , Cummins ,
Perkins , Isuzu , Duetz or China brand diesel engine can be chosen.
2 . Radiator 40 degree or 50 degree max, fans are driven by belt ,
with safety guard .
3 . 12/24DC start motor and storage battery .
4 . Brushless , self-excited , IP22/23 , insulation H alternator .
5 . Absorber to reduce vibration .
6 . Dry type air filter , fuel filter , oil filter .
7 . Main line circuit breaker .
8 . Control system : key start control panel as standard , digital
auto start or ATS system is optional .
9 . 8 hours operation base fuel tank .
10 . High efficient muffler to reduce noise .
11 . Ripple flex exhaust pipe , exhaust siphon and flange etc.
12 . Genset type: open type or soundproof/silent type, or trailer
type .
13 . Maintenance and operation manual for generator , engine and
alternator , engine parts catalog , quality certificate , etc .
Perkins is a famous engine manufacturer, which acquired the world’s
leading brand Rolls-Royce in nineties
of last century. Since the engines produced are used in the
assembly of Rolls-Royce cars, it is world-renowned.
Perkins engines have excellent stability, reliability and
durability, being widely used in the communication,
industry, outdoor works, mining, the rescue, military and other
fields.
| Genset Model | BS-P60 |
| Prime Power (kw/kva) | 48/60 | Standby Power(kw/kva) | 53/66 |
| Voltage (v) | 400/230 | Rated Speed (rpm) | 1500 |
| Frequency (Hz) | 50 | Rated Current (A) | 86.6 |
| Connection: | 3 phase 4 wire | Power Factor: | 0.8 |
| Engine Model: | 1103A-33TG2 | Alternator Model: | UCI224E |
| Gross Weight (kgs)-Open | 1030 | Gross Weight (kgs)-Silent | 1140 |
| Dimensions (mm)-Open | 1750X750X1250 | Dimensions (mm)-Silent | 2270X1000X1360 |
| Engine Parameter: |
Manufacturer/Model Air Intake System Fuel System Cylinder numbers Displacement Bore x Stroke Compression Ratio Max. Power Governing System | PERKINS, 1103A-33TG2, 4 stroke
Turbocharged Rotary Fuel injection Pump, direct injection 3 cylinders Vertical in-line 3.3L 105 x 127 mm 17.25 : 1 59.3KW / 79.5HP Mechanical |
| Exhaust System |
Exhaust Volume Exhaust temperature Max. Allowed Back Pressure | 10.4m³/min 571 ℃ 10 KPa |
| Intake System |
Max. Allowed Pressure Consumption Air Flow | 8 kPa 3.9m³/min 89.0m³/min |
| Fuel System |
100% Load (Prime) 75% Load(Prime) 50% Load (Prime) | 13.9 l/h 10.4 l/h 7.2 l/h |
| Lube System |
Oil Capacity Oil Consumption Engine Oil Tank Capacity Oil Pressure at rated speed | 8.3L ≤0.021 l/h 7.8 L 276 - 414 kPa |
| Cooling system |
Coolant Capacity Thermostat Max. Water Temperature | 10.2L with radiator / 4.4L without radiator 82 - 93℃ 110℃ |
| Alternator Parameter: Basic Information |
The alternators meet the standards of: GB755, BS5000, VDE00530, NEMAMG1-22,IED34-1,CSA22.2 and AS1350 |
| Technical Data: |
Manufacturer: Phases: Connection: Bearing numbers: Power Factor: Protection Class: Altitude Condition: Excitation: Insulation class/Temp. rise class: Tel. Influence Factor TIF: Tel. Harmonic Factor THF: Steady State Voltage Regulation: Alternator Capacity: Efficiency: Cooling Air Flow: | STAMFORD,UCI224E 3 3 phase 4 wire, Y type 1 0.8 IP23 ≤1000M Brushless, self-excitation H / H <50 <2% ≤±1% 60KVA 88.8% 0.216m³/s |
Q : How to choose the power ?
A : Collect all power of your equipments , take the current into
your consideration .
Q : What is the difference between Prime power and Standby power ?
A : Prime power is 12hours continous power , one hour 10% over load
in every 12 running hours is allowed .
Standby power is the limit value of maximum output for emergency
use . Overloading is prohibited
Q : Do you offer OEM service ?
A : Yes
Q : What is your payment term ?
A : 30% T/T in advance , the rest payment before shipment . Or
irrevocable L/C .
Q : What is your lead time ?
A : About 30 days after receiving deposit or original L/C . But if
your order with some special design , then the delivery time is
longer .
