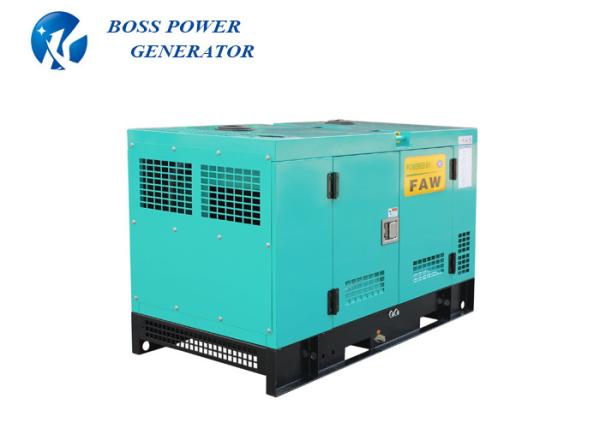

18KW FAW 3 phase 50hz 1500rpm soundproof silent standby diesel
generator
FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory was
founded in 1943. Relying on the
advantages of FAW Technology Center, the factory has formed an
independent research and development
model of open cooperation, built a five-year system of independent
research and development, such as
product development process and standard system, product
development process management system,
and built independent research and development of energy-saving and
environmental protection technology
and electronic intelligent technology. "Five major technology
platforms" is the only key core technology in the
diesel engine industry that simultaneously masters VCU, GPS, EGR,
engine braking, etc., China's first
successful development of four-valve diesel engine, the first
successful development of electronically controlled
common rail diesel engine, the first A company that successfully
developed a two-stage supercharged diesel
engine and successfully promoted it.
| GENSET MODEL | BS-FW23 | |
| Rated Output (KW/KVA) | 18KW/22.5KVA | |
| Max Output (KW/KVA) | 19.8KW/25KVA | |
| Phase | 3 | |
| Power Factor (cos Ø) | 0.8 | |
| Rated Voltage (V) | 50HZ/1500RPM,400V | |
| Rated Current (A) | 32.4A | |
| Silent Genset Dimensions (MM)--N.W(KGS) | 1940*890*980--1060KGS | |
| ENGINE | Model | 4DW91-29D | |
| Type | In-line, four-cylinder, four-stroke | |
| Aspiration | Naturally aspirated | |
| Cooling mode | Water-cooling | |
| 12h Power (KW/KVA) | 21KW/26KVA | |
| 1hour Power (KW/KVA) | 23KW/28KVA | |
| Bore×Stroke (MM×MM) | 90x100 | |
| Displacement(L) | 2.545 | |
| Compression Ratio | 18:1 | |
| Fuel system | Mechanical | |
| Lubricating oil capacity(with filter) (L) | 8L | |
| Lubricating oil consumption(L/h) | 0.05 | |
| Fuel Consumption(g/kw.h) | ≤235 | |
| Air consumption (m3/min) | 1.9 | |
Permissible max. air intake resistance (kPa) | 3.7 | |
Amount of exhaust emission (m3/min) | 5.5 | |
Exhaust temperature after turbine (℃) | 500 | |
| Starting Type | Electric starting/12V | |
| ALTERNATOR | Type | Copy Stamford-BS184E |
| Rated Output (KW/KVA) | 18KW/22.5KVA |
| Max Output (KW/KVA) | 19.8KW/25KVA |
| Power Factor (cos Ø) | 0.8 |
| Excitation Mode | single-bearing with SAE ,Brushless synchronous ,Three harmonic
exciting |
| AVR Model | SX460 |
| Insulation Class | H CLASS |
| IP Level (PROTECTION) | IP23 |
Engine
1 . Mechanical / Electric governing starting method
2 . Nature / Turbocharged after water cooled intaking Method.
3 . Closed water cooled system
4 . Electric Starting
5 . Forged steel crankshaft, cast iron cylinder and replaceable wet
type cylinder liner
6 . Fuel injection pump
7 . Low Consumption
Alternator
1 . Brushless alternator
2 . 4-wire connected
3 . H class insulation
4 . 0.8 lagging for 3 phases , 1.0 lagginh for single phase
5 . AVR voltage regulation
6 . Wide range of flange adaptors and single bearing disc coupling
7 . Leroy Somers, Stamford, Copy stamford
Control panel
The panel is provided with:
With AMF control panel or with ATS (automatic transfer syste)
With CE certification
Features of genset
1 . Timely Warranty Service , Warranty : One year or 1000 Working
Hours from the shipment date , whichever comes first .
2 . Short delivery time .
3 . With ISO9001&CE certification
4 . Spare parts are easy to get from worldwide market
5 . Coupled with all kinds of brand engine & alternator.
6 . Perfect after-service network
7 . Both 50Hz and 60Hz
8 . Strict test including 50% load,75% load,100% load and 110% Load
Q : Which port do you often use when export ?
A : Fuzhou Port , or as customer request.
Q : What certificates do you have ?
A : We have CE, ISO. And we can apply for specific certificate for
different country such as SONCAP
for Nigeria , CIQ for Egypt, SASO for Saudi Arabia , etc
Q : Do you offer OEM service ?
A : Yes
Q : What is your lead time ?
A : About 30 days after receiving deposit or original L/C.But if
your order with some special design ,
then the delivery time is longer .
Q : What is your MOQ ?
A : Above 1pc
Q : Does your generator have global warranty ?
A : Yes . Global warranty service is available depending on the engines and
alternators you choose .
Q : How to choose the power ?
A : Collect all power of your equipments , take the current into
your consideration .
