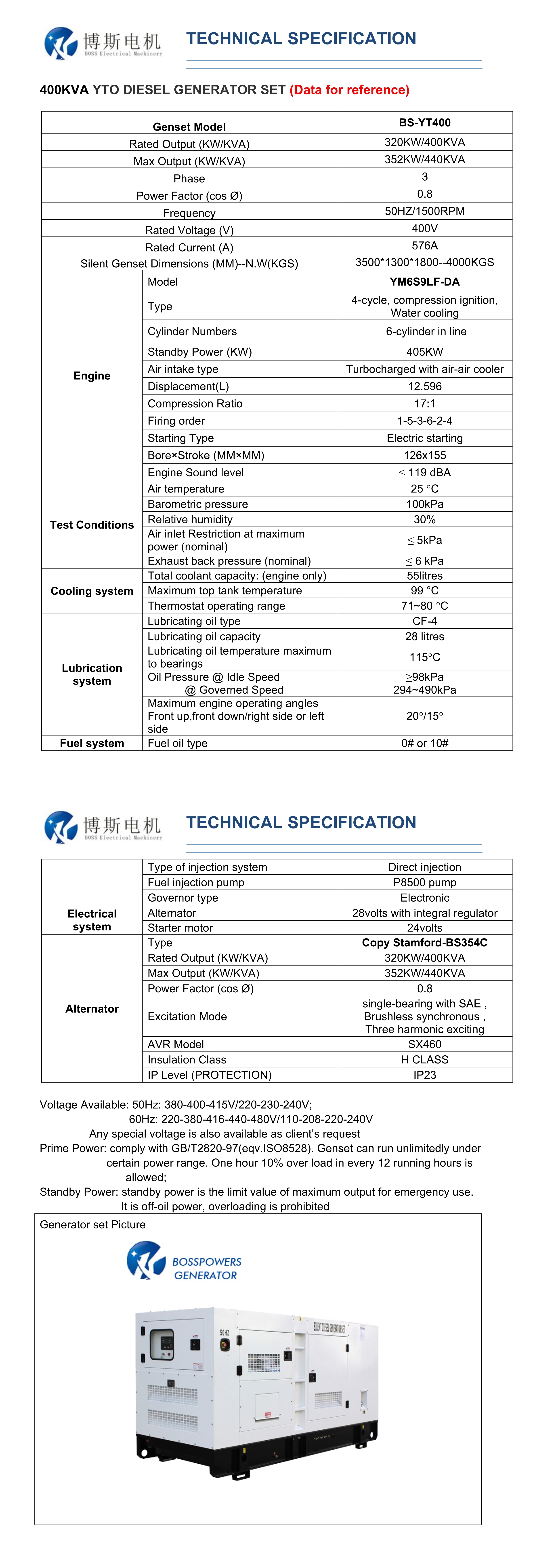

50HZ 3 Phase Electric Start Chinese Engine YTO 320kw 400kva Rated
Power Silent Diesel Generator
| Model | Power(KW) | Capacity(KVA) | Rated current(A) | Engine Model | Stamford Type |
| BS-YT31 | 25 | 31 | 45.10681293 | YT3B2-D | BS184G |
| BS-YT38 | 30 | 37.5 | 54.12817552 | YT3A2Z-D | BS184H |
| BS-YT50 | 40 | 50 | 72.17090069 | LR4B5-D | BS224D |
| BS-YT63 | 50 | 62.5 | 90.21362587 | YT4B2Z-D | BS224E |
| BS-YT65 | 52 | 65 | 93.8221709 | LR4B3Z-D | BS224F |
| BS-YT94 | 75 | 94 | 135.3204388 | LR4M3L-D | BS274C |
| BS-YT100 | 80 | 100 | 144.3418014 | LR4N5LP-D | BS274C |
| BS-YT125 | 100 | 125 | 180.4272517 | LR6A3L-D | BS274D |
| BS-YT150 | 120 | 150 | 216.5127021 | LR6B3L-D | BS274F |
| BS-YT163 | 130 | 163 | 234.5554273 | LR6M3L-D | BS274F |
| BS-YT200 | 160 | 200 | 288.6836028 | YM6H4L-D | BS274H |
| BS-YT225 | 180 | 225 | 324.7690531 | YM6H4LF-D | BS274J |
| BS-YT250 | 200 | 250 | 360.8545035 | YM6S4L-D | BS274K |
| BS-YT275 | 220 | 275 | 396.9399538 | YM6S4LF-D | BS314D |
| BS-YT313 | 250 | 313 | 451.0681293 | YM6S9L-D | BS314ES |
| BS-YT350 | 280 | 350 | 505.1963048 | YM6S9L-DB | BS314FS |
| BS-YT375 | 300 | 375 | 541.2817552 | YM6S9LF-D | BS314F |
| BS-YT400 | 320 | 400 | 577.3672055 | YM6S9LF-DA | BS354C |
More specific parameters to choose.
(1) The silent canopy we use cold-rolled sheet, all positions are
stronger.
(2) Our spraying plastics all go through pre-treatment of pickling
and phosphating,
so that the surface of the painting will not change color even if placed outside for five
years.
(3) Canopy color painted by customer's requirement.
(4) Strict test including 50% load,75% load,100% load and 110% Load
.
(5) Forklift mouth in base frame for easy loading and discharging.
(6) Logo made by customer's requirement if order quantity ≥10units
or a full container.
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or
irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if
your order with some special design,
then the delivery time is longer.
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your
consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in
every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency
use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach
first) from ex-factory date.During the
guarantee period,our company will provide the free easy damaged
spare part for problems caused by our
quality of production or raw material except the damageable spare
parts of diesel engine caused by
customer's incorrect man made operation.After expiration,our
company provides cost parts maintenance
for gen-set.
