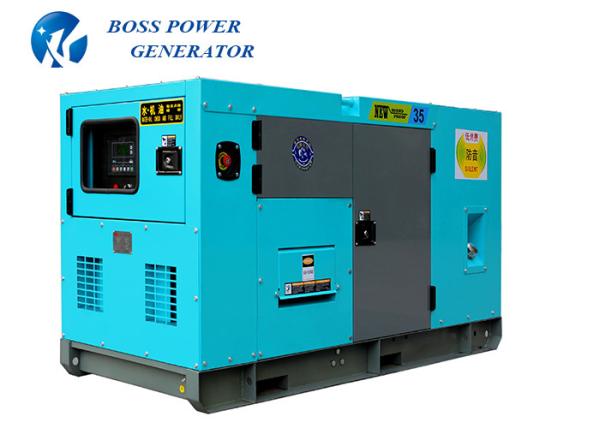

Electric Start Quanchai Low Noise Soundproof Power Diesel Generator
12kw
Basic Configuration
1 . Exhaust silencer 2 . Flexible pipes 3 . Starting battery 4 .
Starting Charger 5 . Cooling radiator
6 . Battery Wires 7 . Base frame 8 . Main circuit breaker 9 . AVR
10 . Manual books 11 . Control box
12 . Switch-box 13 . Genset wooden
Optional Supply
1 . ATS ( Automatic transfer system )
2 . AMF Panel
3 . Silent canopy (for silent type only)
4 . Fuel Tank (8 hours running)
5 . Four Protection ( high temperature auto shutdown , overload
automatic shutdown , low oil pressure automatic shutdown ,
automatic shutdown phase )
6 . Parallel system
7 . Remote system
8 . Trailer type
9 . Soundproof / water proof
Quanchai Engine :
Quanchai Generator sets seriers diesel engine has always been an
excellent seriers of diesel quality,
the use of direct injection combustion chanber,easy to start,low
fuel consumption,economy,compact structure,
light weight,easy to install layout.With strong motivation,small
vibration,low noise,the performance advantage
of low transfer rate.The key components are optimized for
high-speed automotive diesel engine parts and
components,so that diesel has a good reliability.Dynamic interface
is in line with the SAE standard,having a
good market interchangeability and versatility.Electronic governor
of selective installation makes revolving
speed much stable.
| Genset Model | BS-QC16 |
| Rated Output (KW/KVA) | 12.8KW/16KVA |
| Max Output (KW/KVA) | 14KW/17.6KVA |
| Phase | 3 |
| Power Factor (cos Ø) | 0.8 |
| Frequency | 50HZ/1500RPM |
| Rated Voltage (V) | 400V |
| Rated Current (A) | 23A |
| Silent Genset Dimensions (MM)--N.W(KGS) | 2080*990*1210--880KGS |
| Engine | Model | N485D |
| Type | 4-cycle, direct injection, In line, Water cooling |
| Cylinder Numbers | 4-cylinder |
| Rated Power (KW) | 15.5KW |
| Standby Power(KW) | 17KW |
| Air intake type | Natural Intake |
| Combustion Chamber Type | Direct Injection |
| Displacement(L) | 2.156 |
| Starting Type | Electric starting |
| Bore×Stroke (MM×MM) | 85x95 |
| Fuel consumption (g/kw.h) | ≤245 |
| Alternator | Type | Copy Stamford-BS164D |
| Rated Output (KW/KVA) | 12.8KW/16KVA |
| Max Output (KW/KVA) | 14KW/17.6KVA |
| Power Factor (cos Ø) | 0.8 |
| Excitation Mode | single-bearing with SAE ,Brushless synchronous ,Three harmonic
exciting |
| AVR Model | SX460 |
| Insulation Class | H CLASS |
| IP Level (PROTECTION) | IP23 |
Q : What is your lead time ?
A : About 30 days after receiving deposit or original L/C . But if
your order with some special design ,
then the delivery time is longer .
Q : What is your MOQ ?
A : Above 1pc
Q : Do you offer OEM service ?
A : Yes
Q : What is your payment term ?
A : 30% T/T in advance , the rest payment before shipment . Or
irrevocable L/C .
