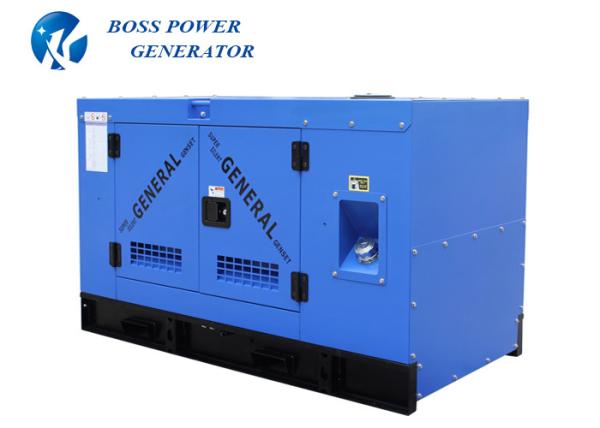

Electric Start 80kw 100kVA Yto Water Cooled Diesel Power Silent
Generator
YTO Engine :
YTO (Jiangyan) Power Machinery Co., Ltd. is a subsidiary of China
Yituo Group Co., Ltd., which is based on
Yangdong Co., Ltd. and has become the multi-cylinder small diesel
production base with the largest variety,
the most complete specifications and the largest scale in China.
One has the ability to produce 300,000
multi-cylinder diesel engines per year. There are 18 basic
multi-cylinder diesel engines with cylinder bores
from 80-102mm, displacements from 1.3-3.9L, and power coverage of
10-105kW. With its powerful power,
reliable performance, economical and durable, low vibration and low
noise, the diesel engine has become
the first choice for many customers .
| Genset Model | BS-YT100 |
| Rated Output (KW/KVA) | 80KW/100KVA |
| Max Output (KW/KVA) | 88KW/110KVA |
| Phase | 3 |
| Power Factor (cos Ø) | 0.8 |
| Frequency | 50HZ/1500RPM |
| Rated Voltage (V) | 400V |
| Rated Current (A) | 144A |
| Silent Genset Dimensions (MM)--N.W(KGS) | 2300*1050*1200--1100KGS |
| Engine | Model | LR4N5LP-D |
| Type | 4-cycle, compression ignition, Water cooling |
| Cylinder Numbers | 4-cylinder in line |
| Standby Power (KW) | 105KW |
| Air intake type | Turbocharged with Aftercooler |
| Displacement(L) | 5.32 |
| Compression Ratio | 17:1 |
| Firing order | 1-3-4-2 |
| Starting Type | Electric starting |
| Bore×Stroke (MM×MM) | 112x135 |
| Engine Sound level | ≤ 113 dBA |
| Test Conditions | Air temperature | 25 °C |
| Barometric pressure | 100kPa |
| Relative humidity | 30% |
| Air inlet Restriction at maximum power (nominal) | ≤ 5kPa |
| Exhaust back pressure (nominal) | ≤ 6 kPa |
| Cooling system | Total coolant capacity: (engine only) | 6litres |
| Maximum top tank temperature | 99 °C |
| Thermostat operating range | 76~95 °C |
| Lubrication system | Lubricating oil type | L-ECD 15W/40 |
| Lubricating oil capacity | 14 litres |
| Lubricating oil temperature maximum to bearings | 115°C |
Oil Pressure @ Idle Speed @ Governed Speed | ≥98kPa 294~490kPa |
Maximum engine operating angles Front up,front down/right side or left side | 20°/15° |
| Fuel system | Fuel oil type | 0# or 10# |
| Type of injection system | Direct injection |
| Fuel injection pump | PM pump |
| Governor type | Electronic |
| Electrical system | Alternator | 24volts with integral regulato |
| Starter motor | 24volts |
| Alternator | Type | Copy Stamford-BS274C |
| Rated Output (KW/KVA) | 80KW/100KVA |
| Max Output (KW/KVA) | 88KW/110KVA |
| Power Factor (cos Ø) | 0.8 |
| Excitation Mode | single-bearing with SAE , Brushless synchronous , Three harmonic exciting |
| AVR Model | SX460 |
| Insulation Class | H CLASS |
| IP Level (PROTECTION) | IP23 |
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or
irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if
your order with some special design,
then the delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for
different country such as SONCAP
for Nigeria,CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
