100kva Perkins Cummins Trailer Diesel Generator Mobile Diesel Power
Generation
Including suspend systen, braking system, four wheels or two wheels
Generator Model ................................Perkins or Cummins
generator series
Type of generator...............................Open type or silent
type
Frequency/Speed................................50Hz/1500rpm,
60Hz/1800rpm
Voltage..............................................110/220,220/380,230/400
240/415, 254/440V
Rated Power.......................................9Kva-200Kva
Standby Power...................................10Kva-220Kva
Phase................................................3 Phase or 1
Phase
Fuel Tank Capacity..............................base fuel tank
Sound Level.......................................63dB to 95dB at 7
meter
Alternator..........................................Meccalte,
Stamford, Leroy Somer,
Frequency: 50HZ;Rotating speed: 1500Rpm
| Model | Power(KW) | Capacity(KVA) | Rated current(A) | Engine Model | Stamford Alternator |
| BS-P9 | 7 | 9 | 12.6 | 403A-11G1 | PI044E |
| BS-P13 | 10 | 13 | 18 | 403A-15G1 | PI044F |
| BS-P20 | 16 | 20 | 28.8 | 404A-22G1 | PI144D |
| BS-P30 | 24 | 30 | 43.3 | 1103A-33G | PI144G |
| BS-P45 | 36 | 45 | 64.9 | 1103A-33TG1 | PI144K |
| BS-P60 | 48 | 60 | 86.6 | 1103A-33TG2 | UCI224E |
| BS-P65 | 52 | 65 | 93.8 | 1104A-44TG1 | UCI224F |
| BS-P80 | 64 | 80 | 115.5 | 1104A-44TG2 | UCI224G |
| BS-P180 | 144 | 180 | 259.8 | 1106A-70TAG3 | UCI274G |
| BS-P200 | 160 | 200 | 288.7 | 1106A-70TAG4 | UCI274H |
Photos of Mobile Tailer Diesel Generator for Telecom Use

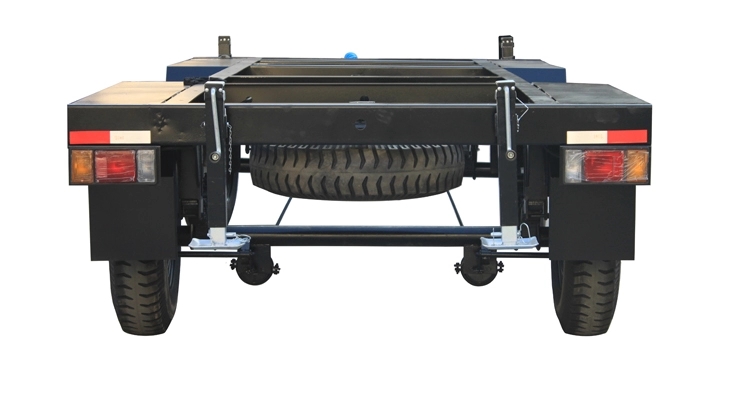

Photos of four wheels trailer ( two wheels for option)
Flexible connection
Braking system
Q : Do you offer OEM service?
A : Yes
Q : What is the difference between Prime power and Standby power?
A : Prime power is 12hours continous power,one hour 10% over load
in every 12 running hours is allowed .
Standby power is the limit value of maximum output for emergency
use . Overloading is prohibited
Q : What about the warranty
A : Guarantee for one year or 1000 hours (accord to whichever reach
first) from ex-factory date .During the
guarantee period ,our company will provide the free easy damaged
spare part for problems caused by our
quality of production or raw material except the damageable spare
parts of diesel engine caused by
customer's incorrect man made operation . After expiration , our
company provides cost parts maintenance
for gen-set.
